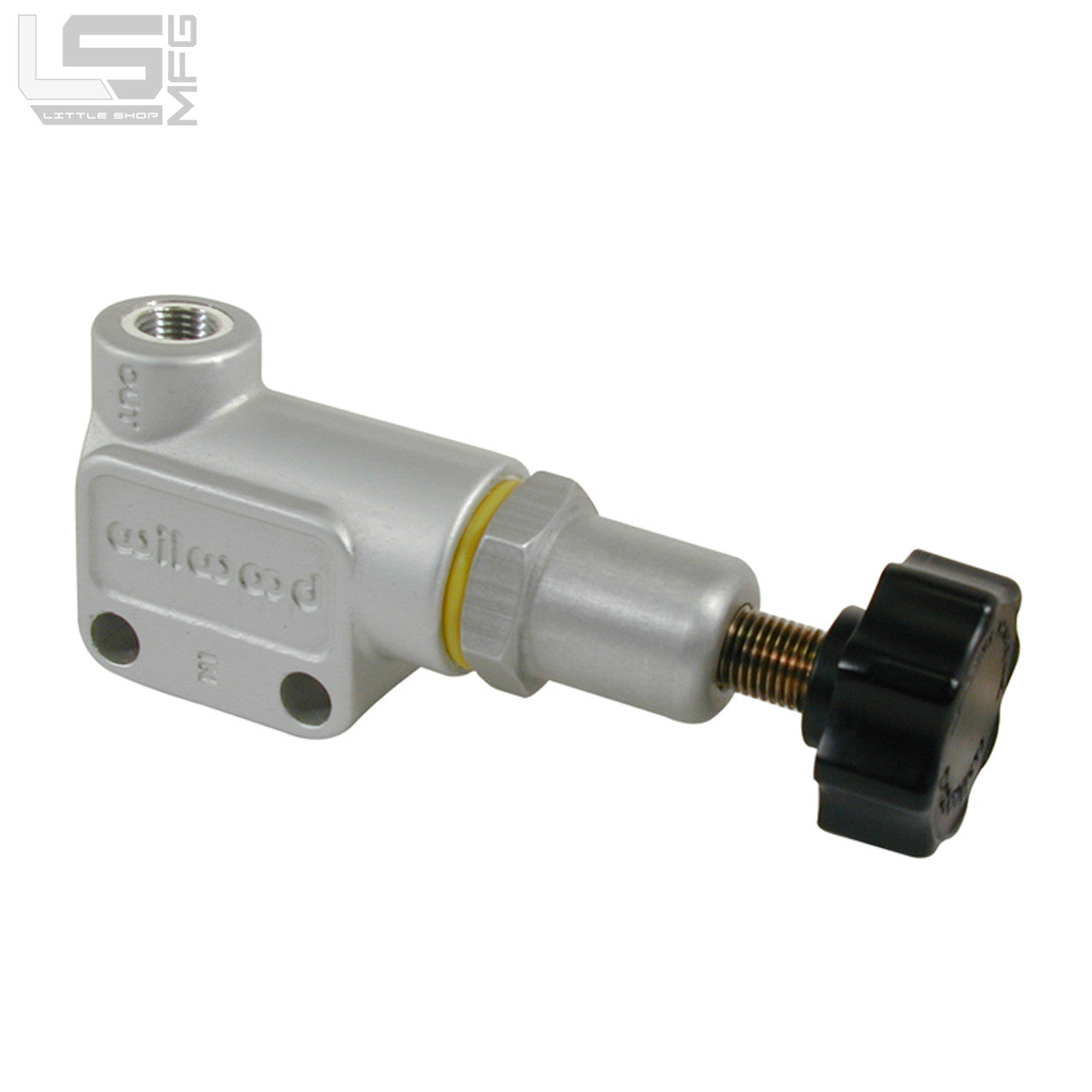

Wilwood Proportioning Valve

Wilwood PN 260-10922. Adjustable proportioning valve for tuning and balancing custom brake systems.

Specifications: Knob adjustment style. One inlet, one outlet, both 3/8-24in inverted flare female threads. Minimum 100 psi, maximum 1,000 psi, up to 57% pressure reduction. Clear anodized aluminum construction. Sold individually.

Normally installed in the rear fluid line to prevent rear wheels from locking before the front, or to allow fine adjustment of front-to-rear brake bias. Requires brake line work to install - not a direct replacement for any stock proportioning valve.
