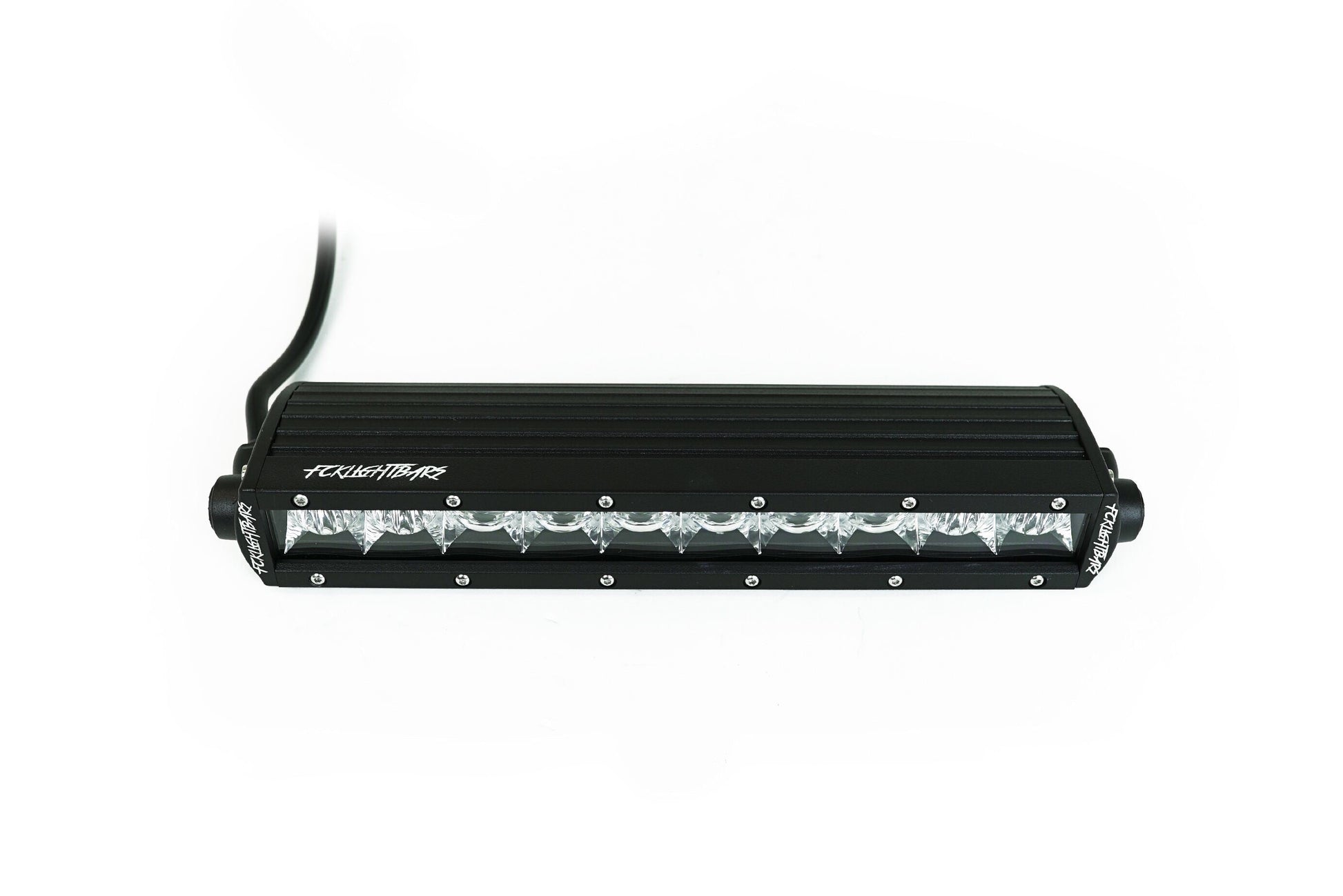

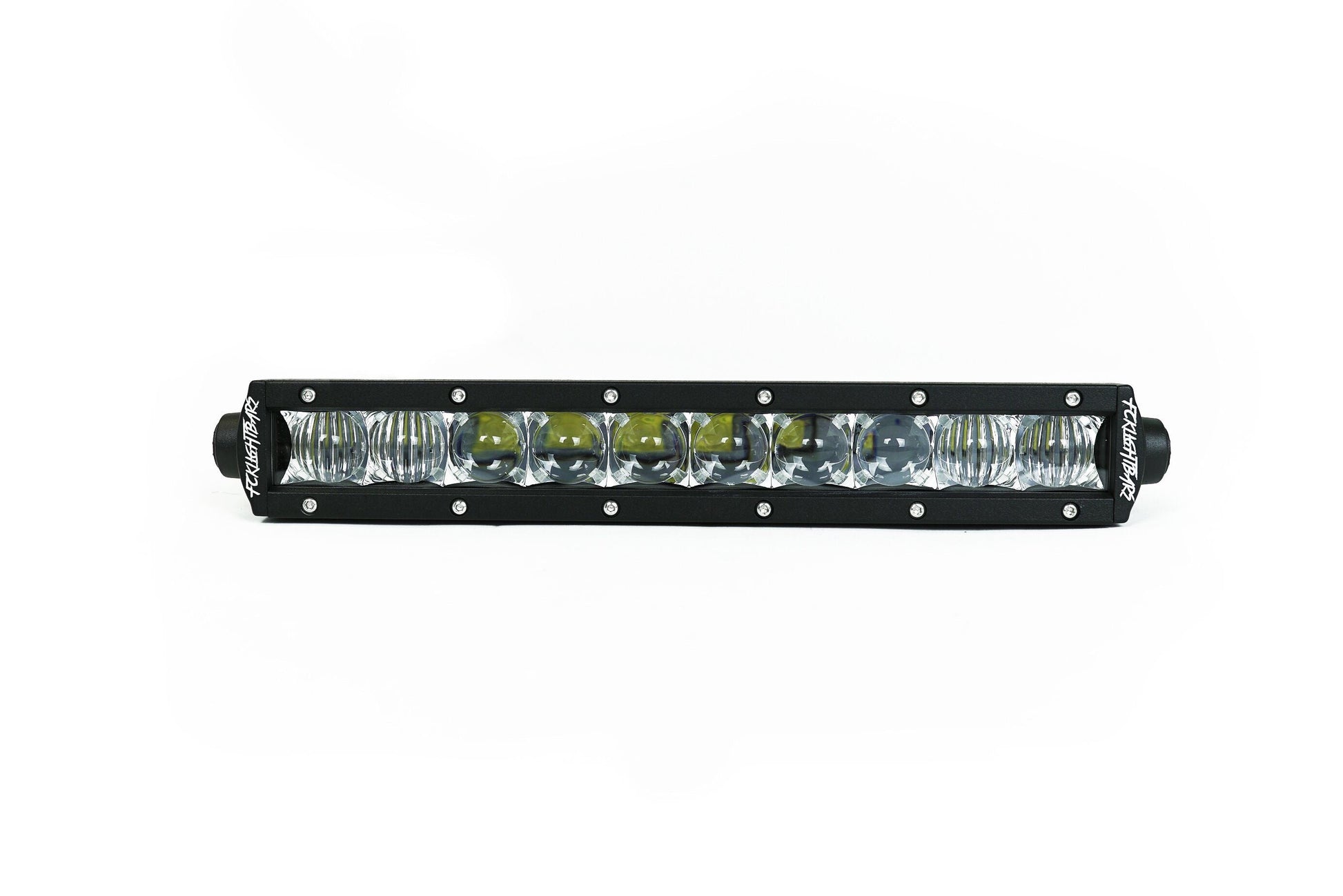

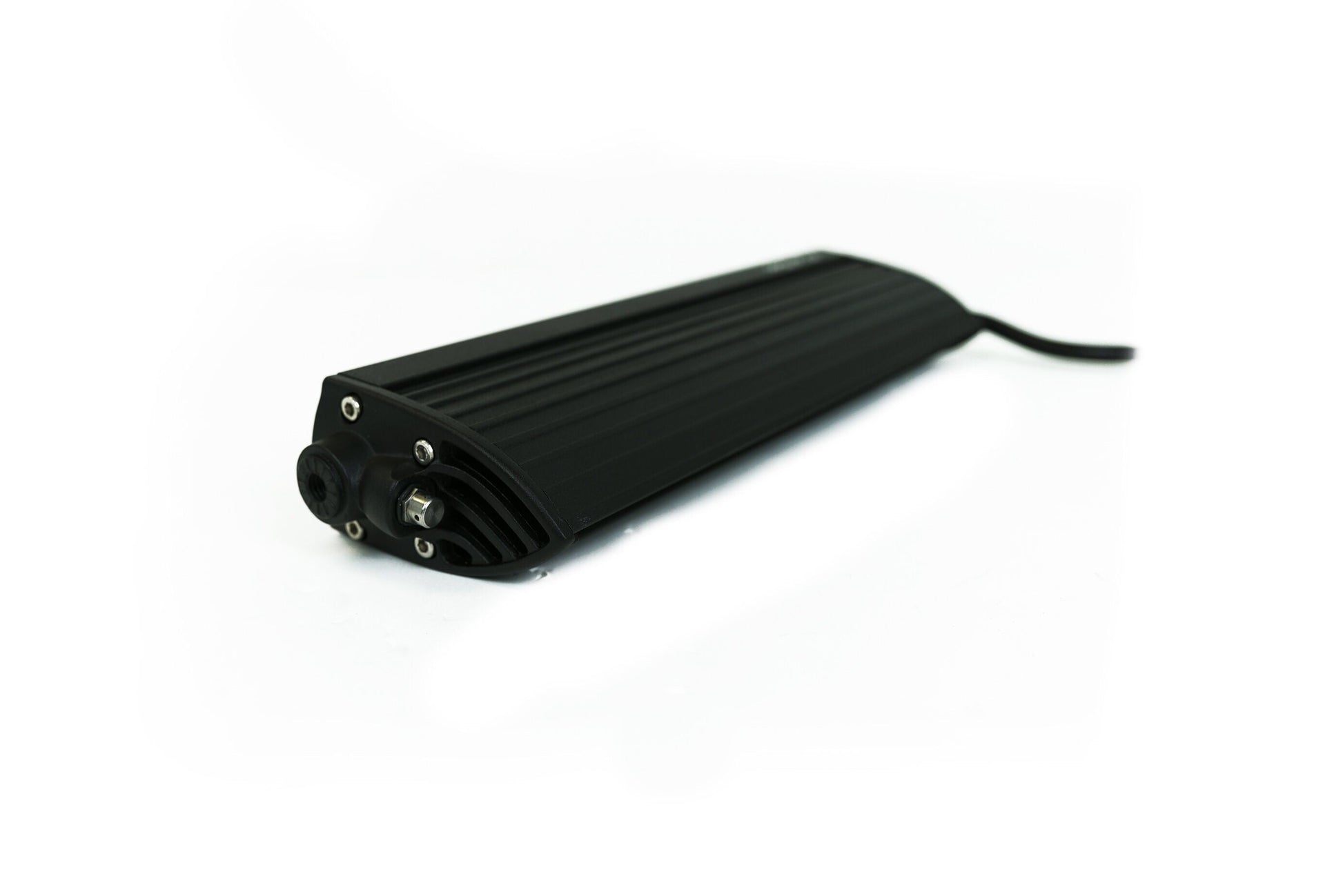

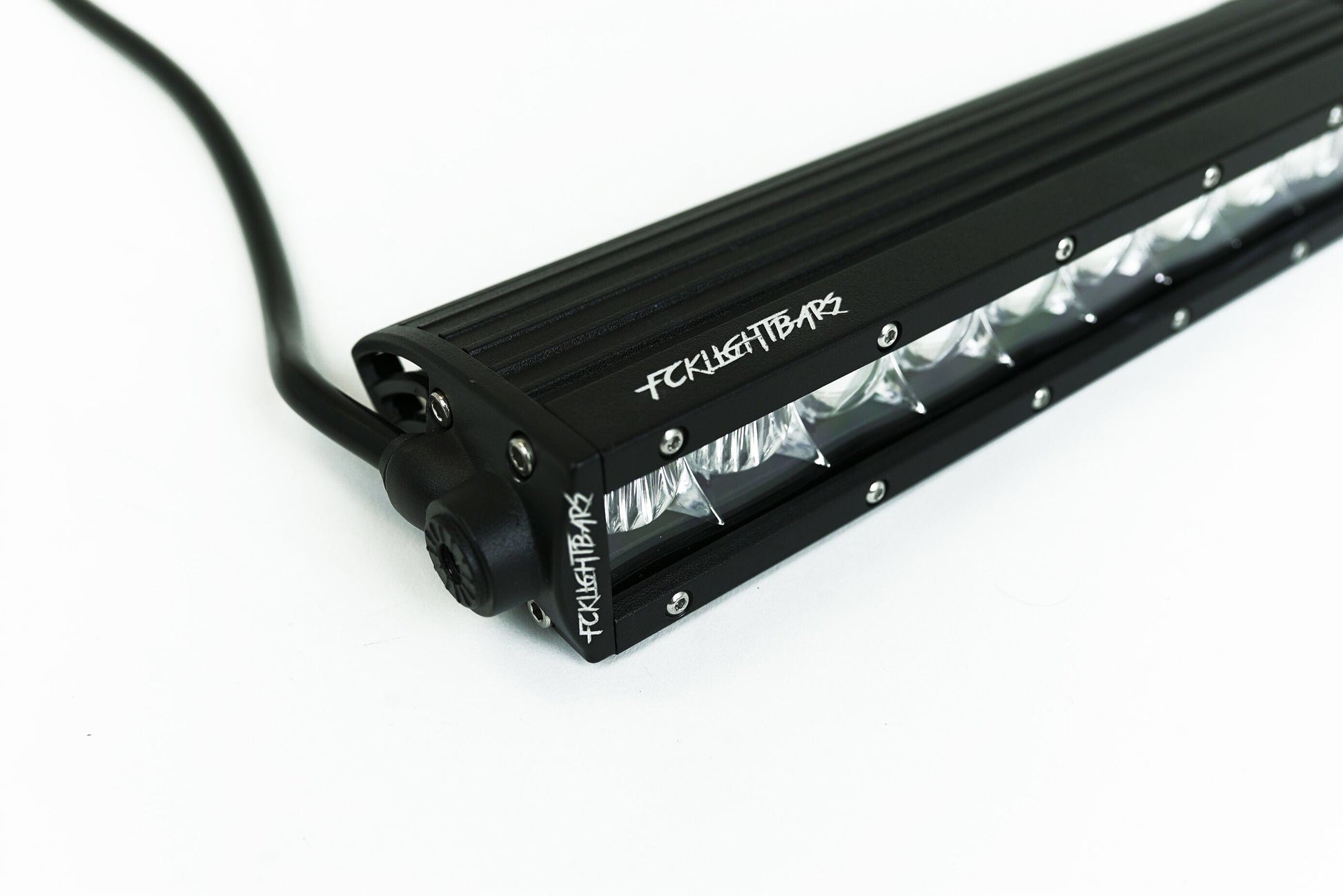

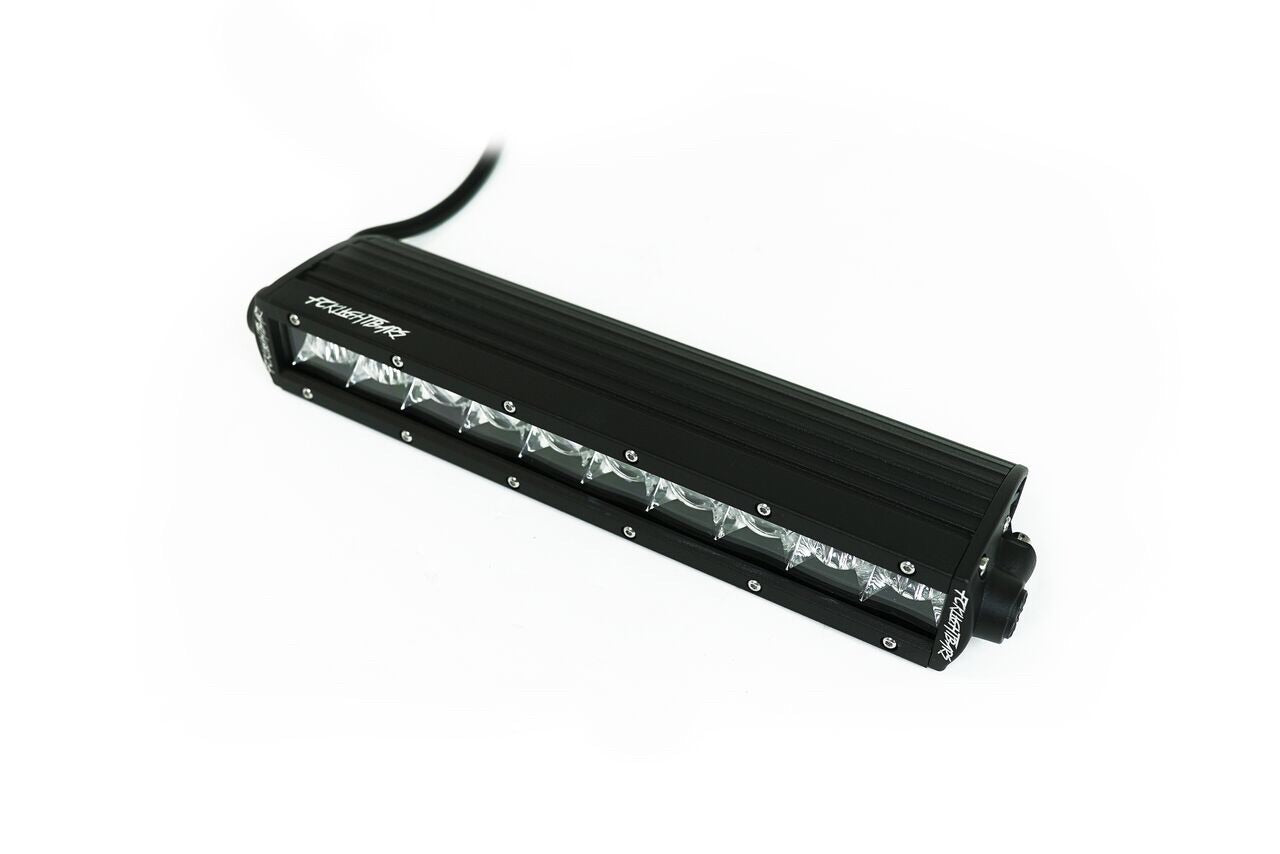

SS-Series Slim LED Light Bar – 3D Optic (7"–50")

Super Slim Housing, Zero Compromise

The SS-Series puts our popular 3D projector optic into a sleek, aggressive low-profile housing. It's the bar for builds where a full-size dual row is too much — grille inserts, bumper openings, roof lines — without giving up real output: 7W CREE chips pushing up to 30,980 lumens on the 50-inch bar.

Sized to Fit Anywhere

Seven lengths from 7 to 50 inches, straight or curved, in spot, flood, or combo beam patterns. The slim profile disappears into the bodywork by day and works like a full-size bar by night.

What's in the Box

• 1x SS-Series light bar (size/beam/shape per your selection)
• Mounting brackets and hardware

Wiring harness is not included. Add a plug-and-play harness for a relay, fuse, and switch ready to go.

Specifications

• LEDs: 7W CREE chips
• Optics: 3D reflector with projector lens
• Housing: black, super slim profile, straight or curved
• Lens: PMMA polycarbonate
• Waterproof rating: IP68
• Lifetime warranty — LED failure, condensation, flickering, defects

Output by Size

• 7" — 42W / 4,928 lumens
• 13" — 84W / 8,657 lumens
• 20" — 105W / 14,200 lumens
• 25" — 168W / 15,658 lumens
• 30" — 210W / 19,200 lumens
• 40" — 294W / 27,670 lumens
• 50" — 336W / 30,980 lumens

SS-Series FAQ

How slim is it?

Single row, low-profile housing — the smallest face of any bar we make. It tucks into spots a dual row bar physically won't fit.

SS-Series vs. C4-SR?

Both are single row. The C4-SR steps up to our 4D projector optic and IP69 rating for maximum single-row output; the SS-Series is the slimmer, lighter-cost pick.

Spot, flood, or combo?

Combo is the most popular for a do-everything bar — spot center for distance with flood edges for spread.

See every bar in the LED light bar collection. Questions? Call us at (833) 325-3250.
