Red-Head Reman Steering Gear Box – 1980-1991 Chevy/GMC Pickup, Suburban, Blazer & Jimmy (4-Turn, Pinch-Bolt Output)

Remanufactured steering gear box built by Red-Head Steering Gears (Auburn, WA) to OEM specifications, backed by a full 12-month/unlimited-mileage warranty. Fits 1980-1991 Chevrolet or GMC Pickup Trucks, Suburban's, Blazer's or Jimmy's.

Pinch-Bolt Output, 4-Turn Ratio: This steering gear has a notch in the output shaft, which indirectly turns the tires — a pinch bolt style is used to connect it to the pitman arm. The 4-Turn ratio is recommended for off-roading or vehicles running tires 37" or larger, giving more leverage when steering. If your output shaft is threaded instead (nut-and-washer pitman arm connection), you need SKU 2856-4T. The standard 3-Turn ratio of this gear is available under SKU 2858.

Specifications:
Weight: 29 lb(s)
Ratio: 4 Turns

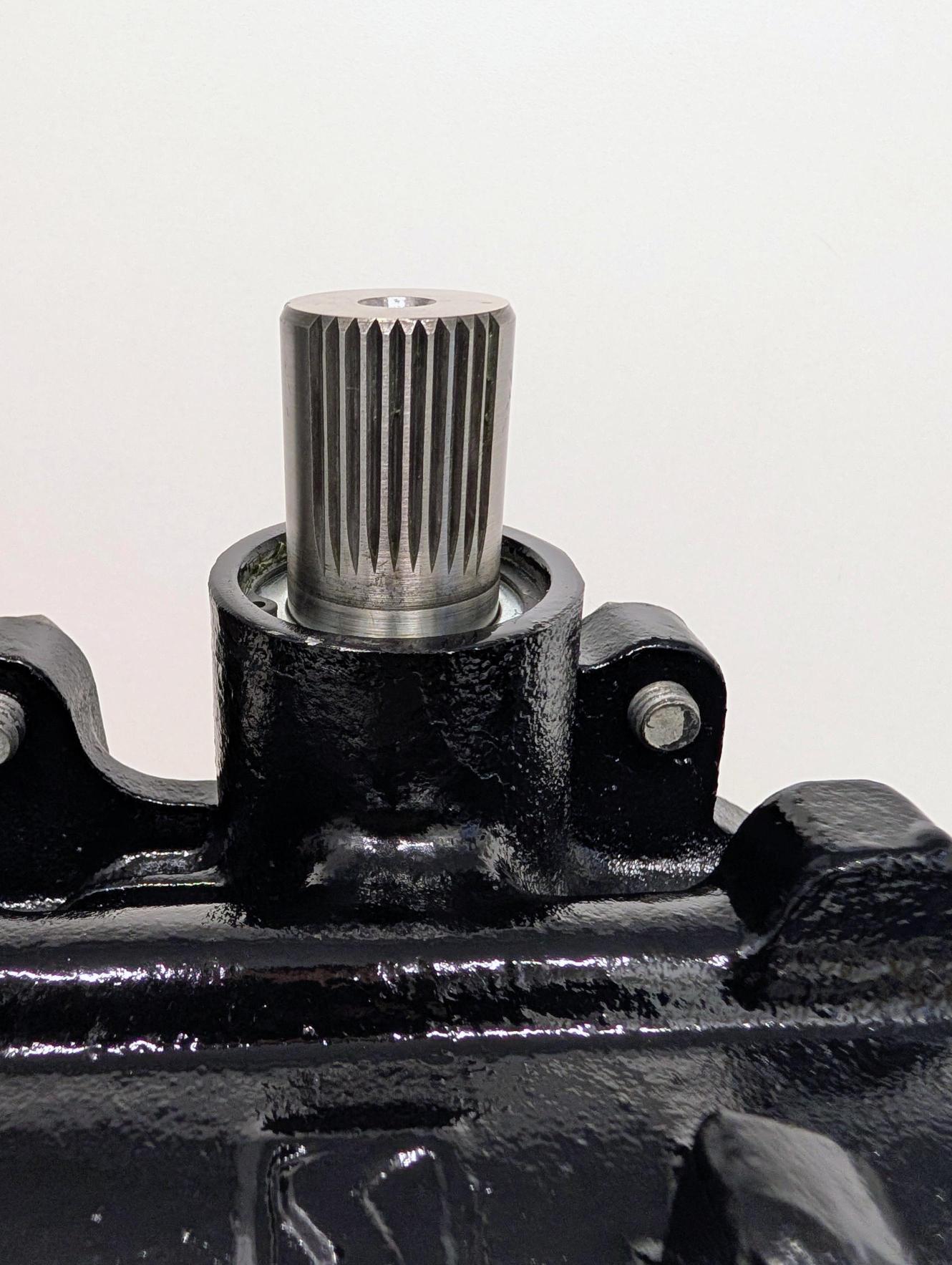

Input: Small Input (3/4"), 25 Splines w/1 Flat (Need 30 Spline Coupler)

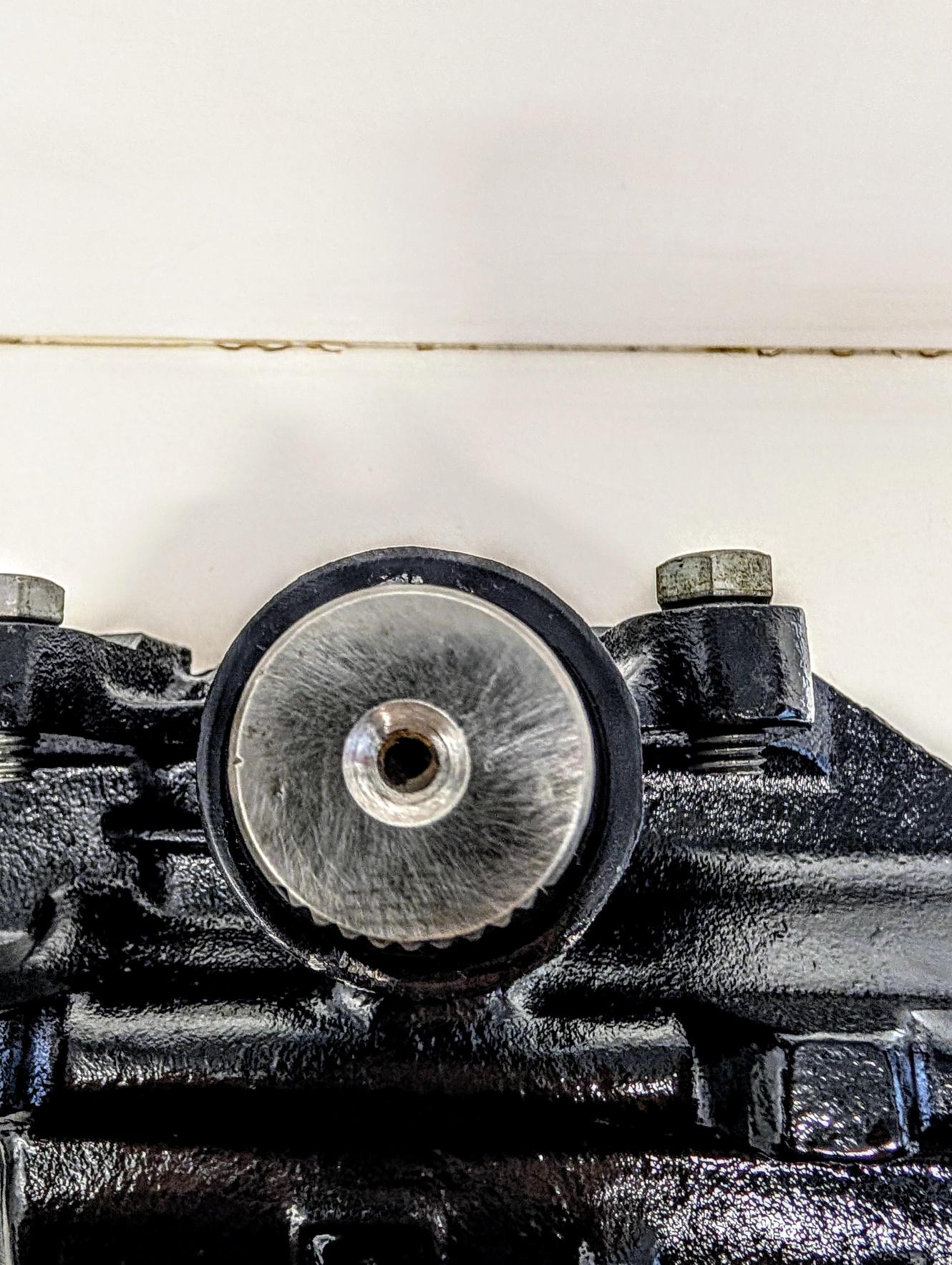

Output: Notched Sector Shaft (for Pinch-Bolt Style Pitman Arm) w/9 splines
Fittings: O-Ring

Options available: Add 2 additional power steering ports (4 total) for an aftermarket hydraulic RAM-assist steering setup (+$110).

Core Charge: This price includes a $275 refundable core deposit. Drain your old core of fluid, replace the port plugs, and return it to us within 60 days of purchase for a full $275 refund (cores returned 61 days–1 year are refunded at 50%; no refund after 1 year). Contact us for return instructions.
