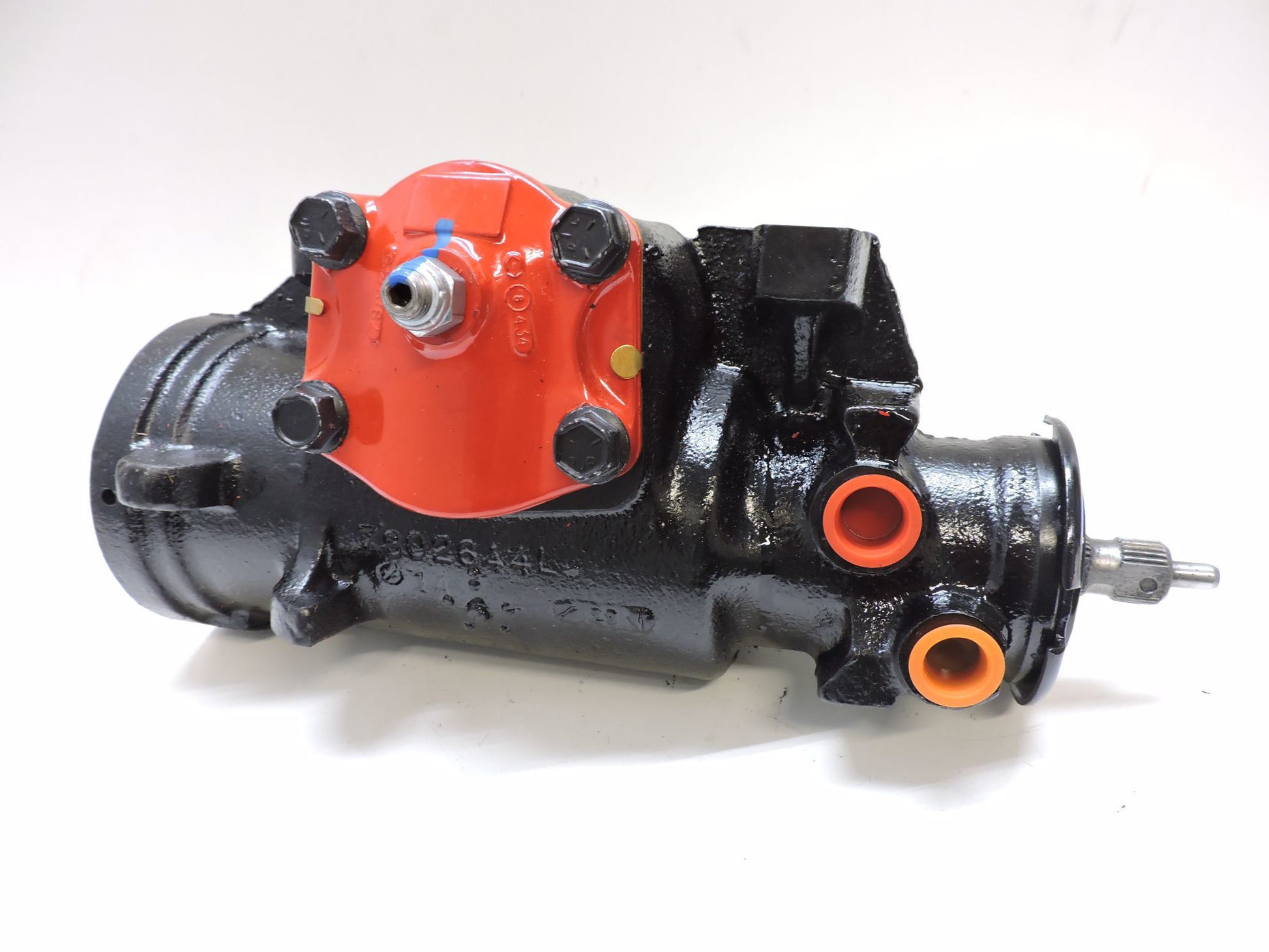

Red-Head Reman Steering Gear Box – 1980-1991 Chevy/GMC Pickup, K5 Blazer, Suburban & Jimmy (4-Turn, Threaded Output)

Remanufactured steering gear box built by Red-Head Steering Gears (Auburn, WA) to OEM specifications, backed by a full 12-month/unlimited-mileage warranty. Fits 1980-1991 Chevrolet or GMC Pickup Trucks, K5 Blazer's, Suburban's or Jimmy's.

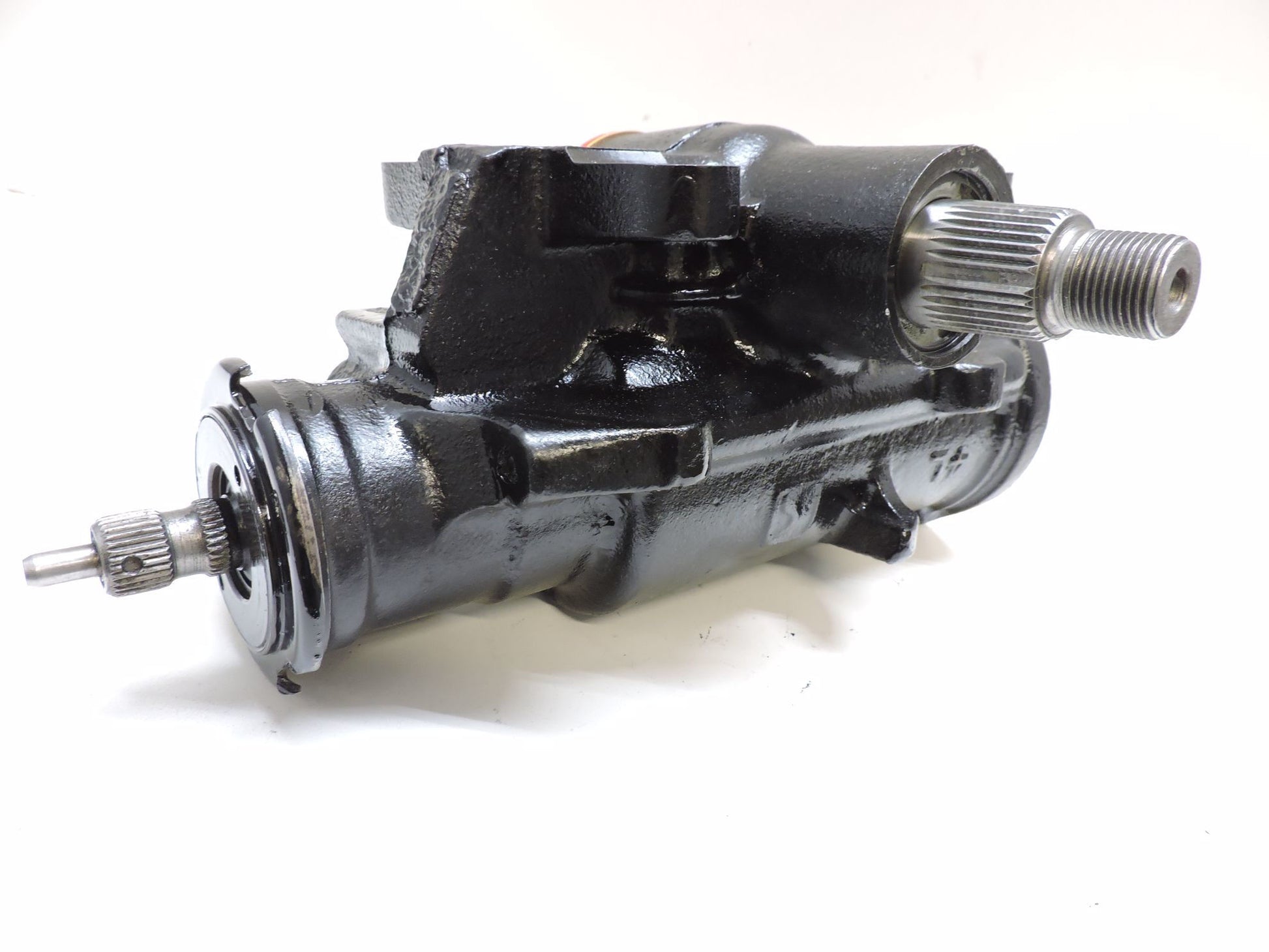

Threaded Output, 4-Turn Ratio: This steering gear has a threaded output shaft, which indirectly turns the tires — a nut and washer is used to connect it to the pitman arm. The 4-Turn ratio is recommended for off-roading or vehicles running tires 37" or larger, giving more leverage when steering. If your output shaft is notched instead (pinch-bolt pitman arm connection), you need SKU 2858-4T. The standard 3-Turn ratio of this gear is available under SKU 2856.

Specifications:
Weight: 29 lb(s)
Ratio: 4 Turns
Input: Small Input (3/4"), 25 Splines
Output: 4 Master Spline w/32 Spline
Fittings: O-Ring

Options available: Add 2 additional power steering ports (4 total) for an aftermarket hydraulic RAM-assist steering setup (+$110), or a new nut and washer for the pitman arm (+$21).

Core Charge: This price includes a $225 refundable core deposit. Drain your old core of fluid, replace the port plugs, and return it to us within 60 days of purchase for a full $225 refund (cores returned 61 days–1 year are refunded at 50%; no refund after 1 year). Contact us for return instructions.
