Red-Head Reman Steering Gear Box – 1980-1991 Chevy/GMC Pickup, K5 Blazer, Jimmy & Suburban (3-Turn, Pinch-Bolt Output)

Remanufactured steering gear box built by Red-Head Steering Gears (Auburn, WA) to OEM specifications, backed by a full 12-month/unlimited-mileage warranty. Fits 1980-1991 Chevrolet or GMC Pickup Trucks, K5 Blazer's, Jimmy's, or Suburban's.

Pinch-Bolt Output: This steering gear has a notch in the output shaft, which indirectly turns the tires — a pinch bolt style is used to connect it to the pitman arm. If your steering gear output shaft is threaded instead (a nut and washer holds your pitman arm to the steering gear), you need our threaded-output version, SKU 2856. A 4-Turn ratio (better for off-roading or larger-than-stock tires) is also available under SKU 2858-4T.

Specifications:
Weight: 29 lb(s)
Ratio: 15:1 / 3 Turns

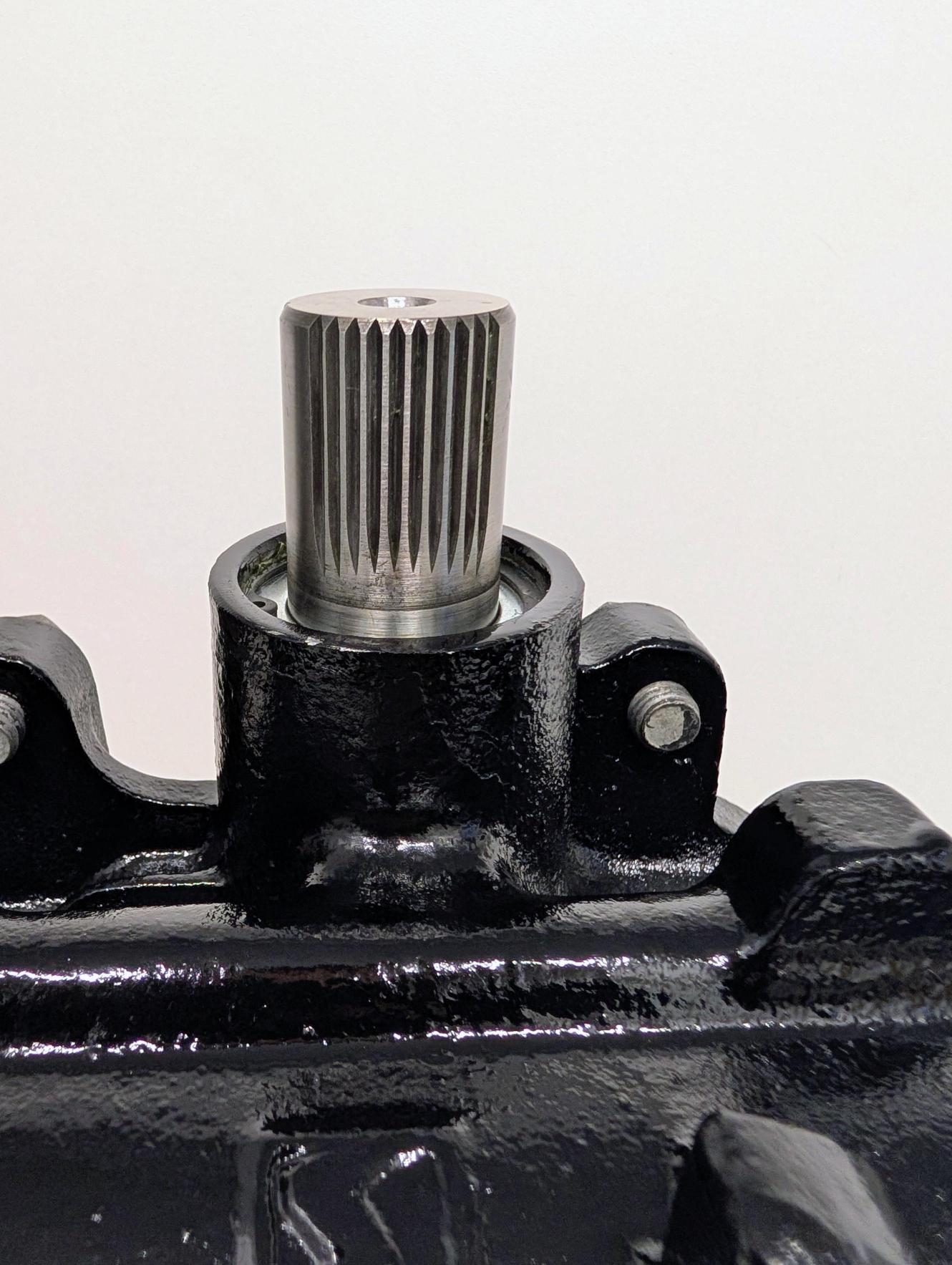

Input: Small Input (3/4"), 25 Splines w/1 Flat (Need 30 Spline Coupler)

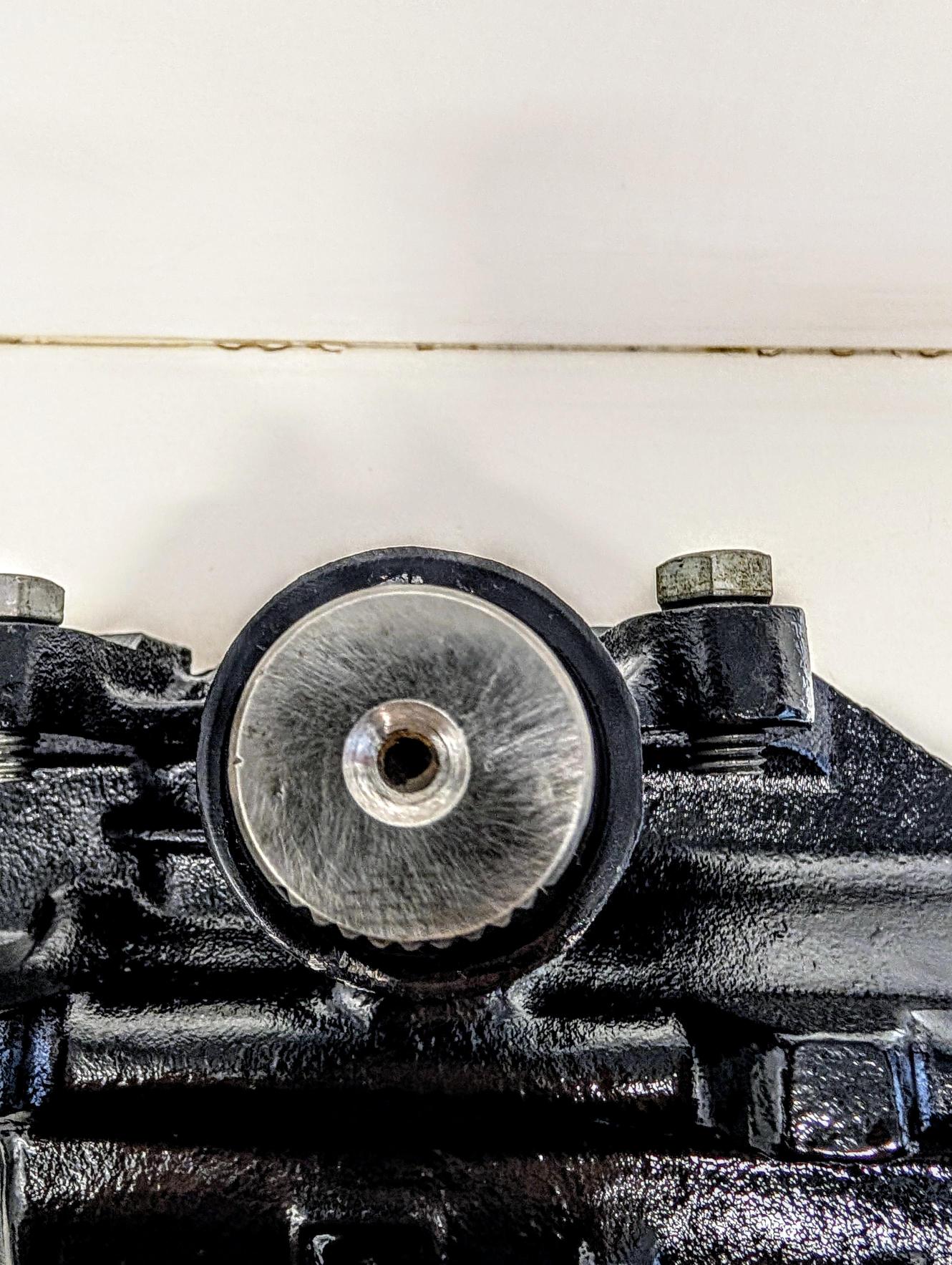

Output: Notched Sector Shaft (for Pinch-Bolt Style Pitman Arm) w/9 splines
Fittings: O-Ring

Options available: Add 2 additional power steering ports (4 total) for an aftermarket hydraulic RAM-assist steering setup (+$110).

Core Charge: This price includes a $275 refundable core deposit. Drain your old core of fluid, replace the port plugs, and return it to us within 60 days of purchase for a full $275 refund (cores returned 61 days–1 year are refunded at 50%; no refund after 1 year). Contact us for return instructions.
