GMT400 8 Lug Extended Parts Bundle - Coilover

Extended parts bundle for converting your 1988-1999 Chevy & GMC 2500/3500 GMT400 to a solid front axle, coilover configuration. Designed to be used with a Dana 60 or AAM 9.25 from a 1994-2013 Dodge Ram 2500/3500, and coilovers with at least 10" of travel (not included). 2003+ Dodge axles are high pinion.

Coilovers utilize the existing shock mounting point on the Dodge axle. Most customers trim the remaining coil mount off the Dodge axle.

Includes:

• GMT400 frame plates
• Coilover mounts designed specifically for the GMT400 frame
• Caliper spacer kit with bolts, 6 lug conversion
• Ultra heavy duty solid track bar kit
• GM diff actuator relocation kit
• Front slip yoke eliminator
• Pitman arm
• Crossmember
• Complete adjustable radius arms using Johnny Joints and polyurethane bushings
• Limit straps
• Brake lines (26" length is standard, custom lengths available)

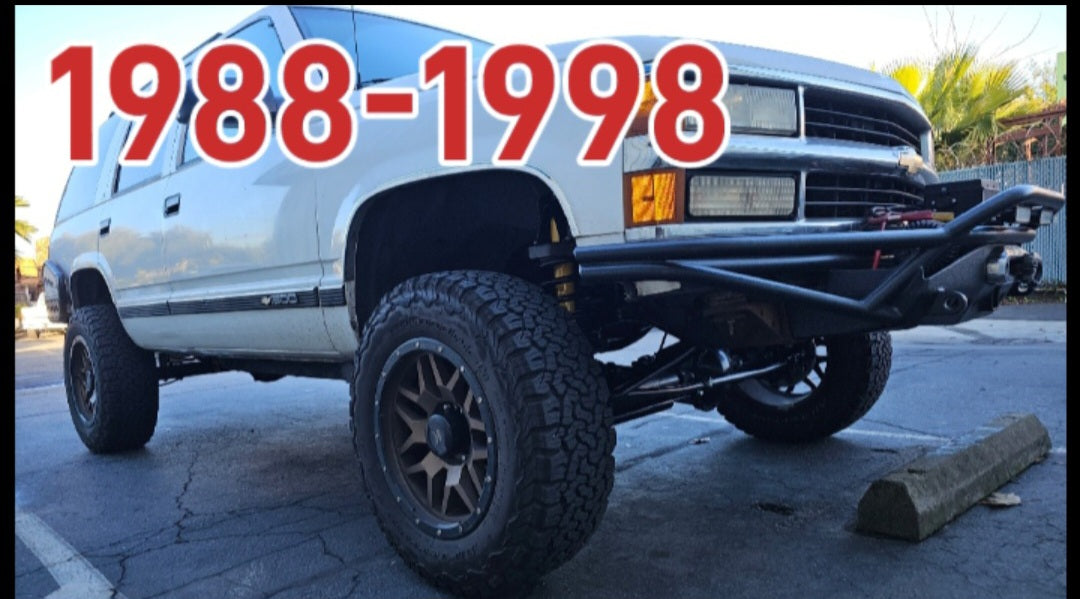

*Sample image, different models will vary.
