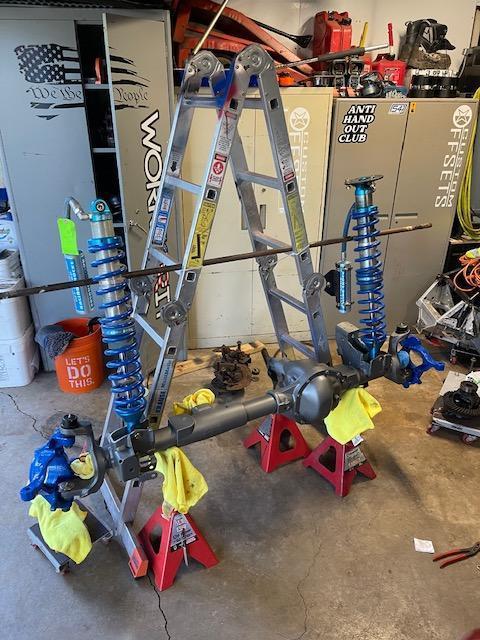

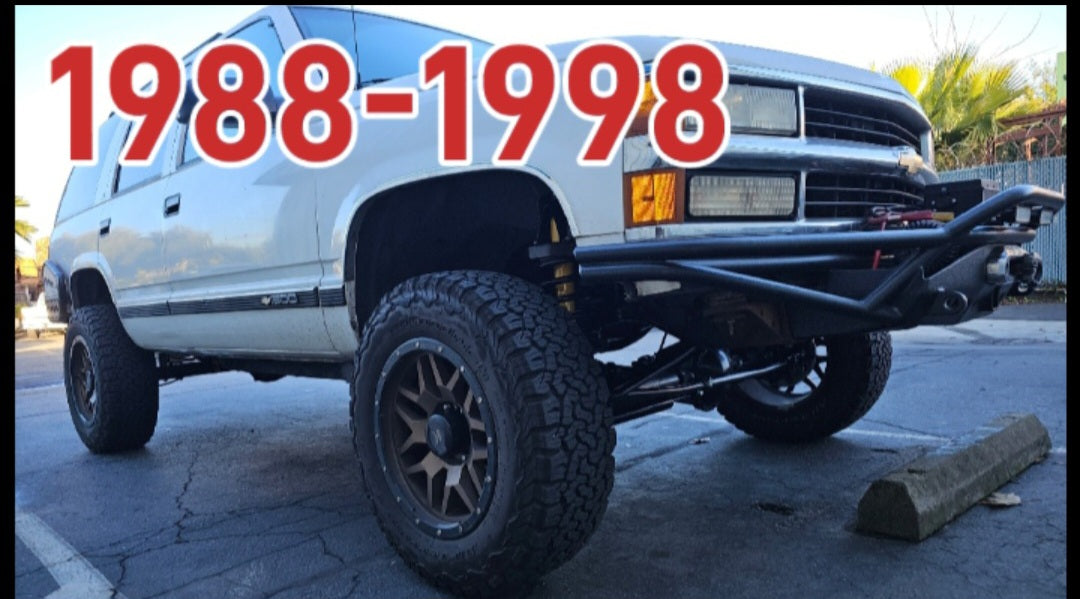

Extended parts bundle for converting your 1988-1999 Chevy & GMC 1500 GMT400 to a Dana 44 solid front axle, coilover configuration. Designed to be used with a Dana 44 from a 2000-2001 Dodge Ram 1500, and coilovers with at least 10" of travel (not included).
Coilovers utilize the existing shock mounting point on the Dodge axle. Most customers trim the remaining coil mount off the Dodge axle.
Includes:
GMT400 frame plates
Coilover mounts designed specifically for the GMT400 frame
Caliper spacer kit with bolts, 6 lug conversion
Ultra heavy duty solid track bar kit
GM diff actuator relocation kit
Front slip yoke eliminator
Pitman arm
Crossmember
Complete adjustable radius arms using Johnny Joints and polyurethane bushings
Limit straps
Brake lines (26" length is standard, custom lengths available)
