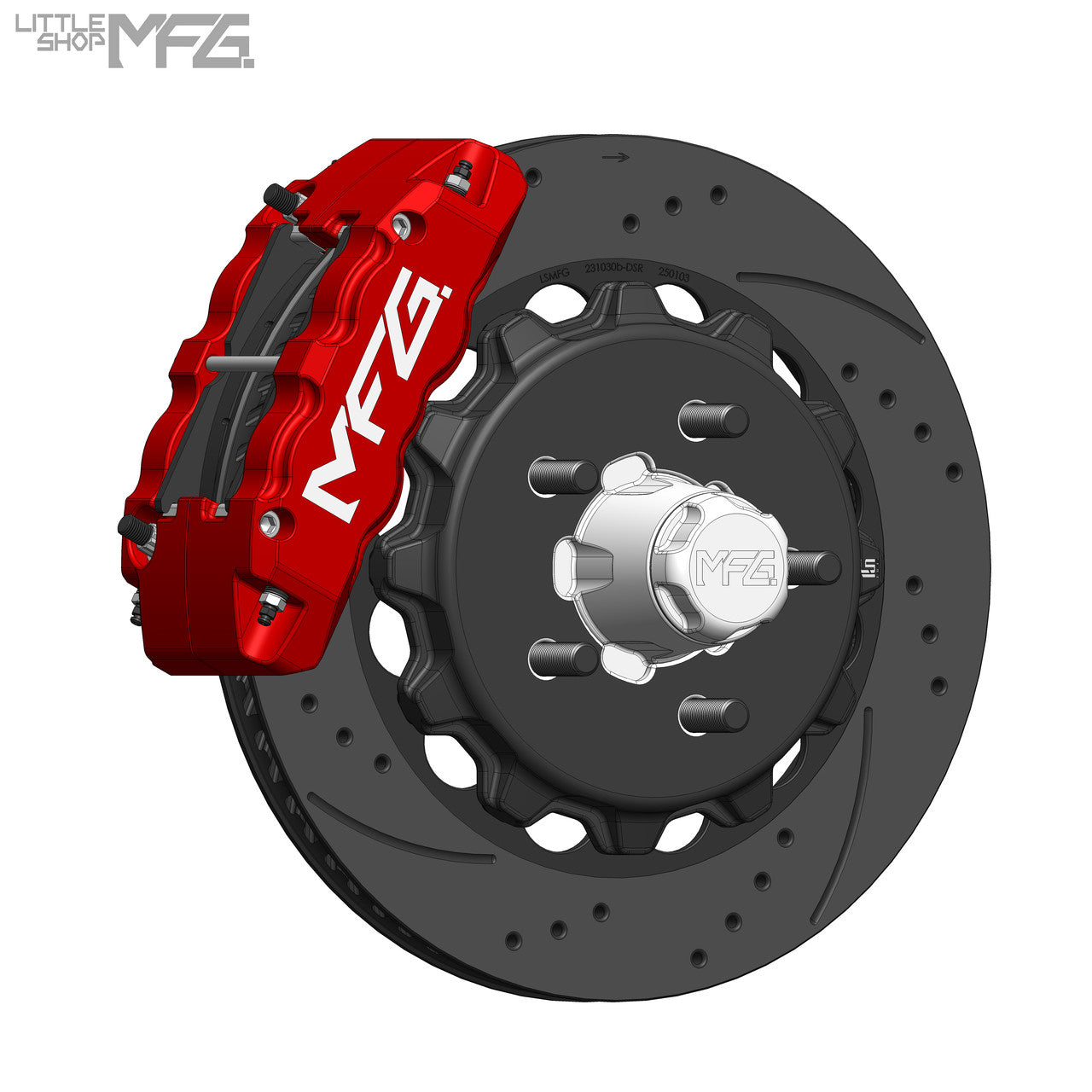

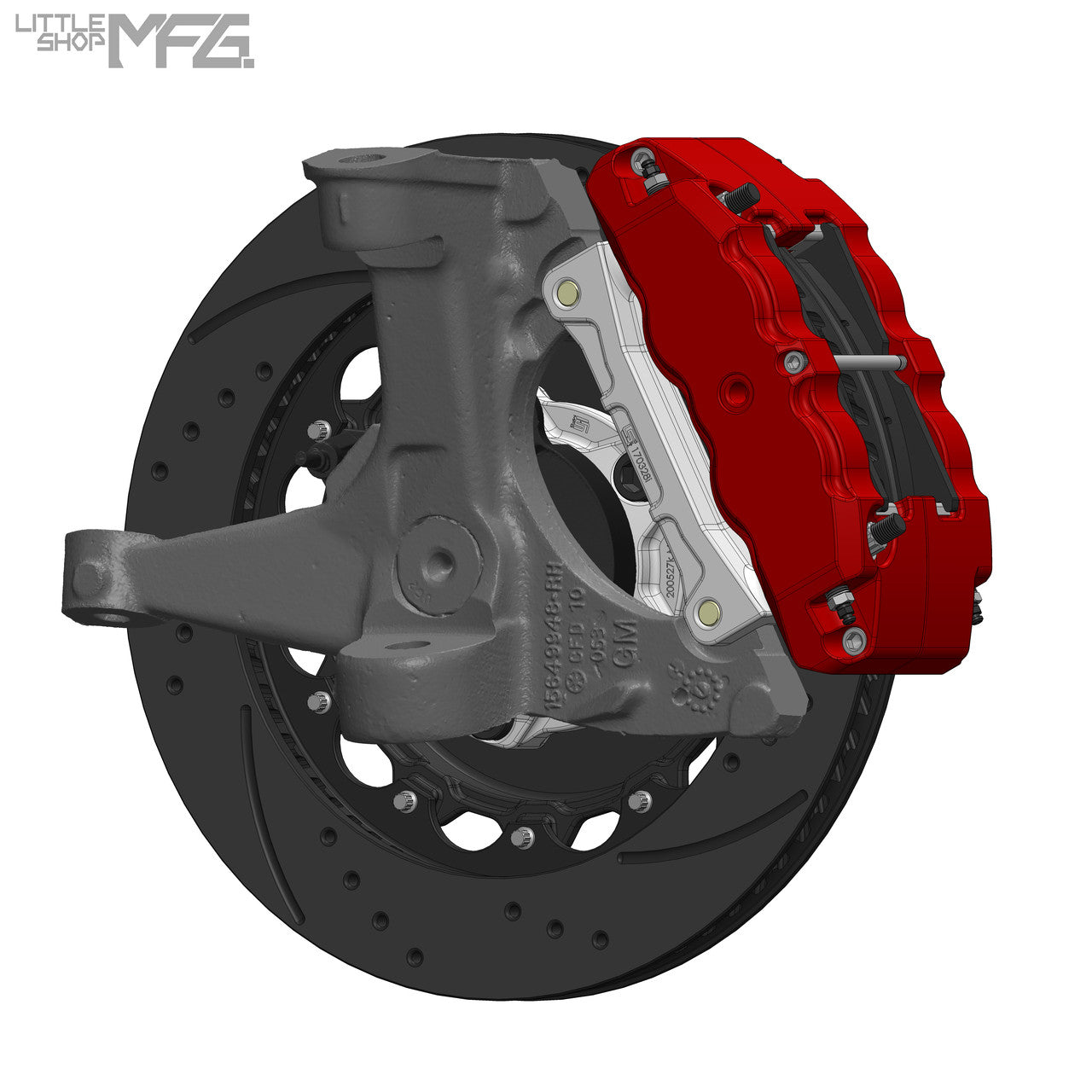

Front 14in Big Brake Kit - OEM Type Spindles | 1988-2000 Chevy/GMC C1500

A serious 14" front big brake kit for 1988-2000 Chevy/GMC full-size 2wd C1500 trucks and SUVs, running your choice of 6-piston Wilwood or 4-piston MFG calipers on LSMFG machined aluminum hubs, hats, and radial brackets that bolt straight to factory spindles or factory-type drop spindles — no cutting, no drilling.

Big Brake Kits Now Include Free Rotors

Every big brake kit ships standard with LSMFG drilled/slotted rotors at no additional charge.

What You Get

• LSMFG machined aluminum hub, hat, and radial mounting bracket
• Choice of MFG 4-piston calipers (black or red) or Wilwood 6-piston calipers (black or red)
• Drilled/slotted rotors, included free
• Optional braided stainless hose upgrade

Fitment

Fits spindles with the factory 1.25" rotor width. Non-heavy-duty spindles from 88-91 standard cabs (1" rotor width) must first be swapped to an 88-91 extended cab, 90-93 454SS, or any 92-00 spindle. Drop spindles must also accept the factory 1.25" rotor width. Fits inside most 18" wheels.

Want to run a dedicated drop spindle instead of trimming a stock-style spindle? See our matching kit built for React and Wilwood Iron ProSpindles, which requires zero spindle modification. Pair either front kit with our matching 14" rear kit to finish the whole truck.

Custom color-matched MFG calipers and custom wheel-bolt-pattern machining are available as special order — contact us before ordering with your OEM paint code or bolt pattern spec, since these options can't be returned.

View Install Instructions (PDF)
