Belltech Rear 8" Drop Axle Flip Kit - 1990-1999 Chevy/GMC C2500

Belltech's 8-inch rear axle flip kit is one of the most aggressive bolt-on rear drop options available for the C2500 platform, relocating the axle above the leaf springs to deliver a dramatic, frame-hugging stance that no spring or shackle combination alone could safely achieve.

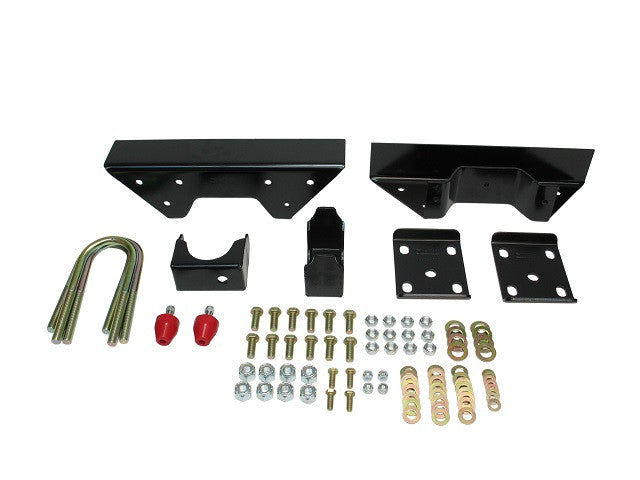

Built specifically for 1990-1999 C2500 trucks, this kit includes the correct axle mounting brackets, U-bolts, and hardware engineered for the heavier leaf spring pack and axle housing found on 3/4-ton trucks. At 8 inches of drop, you're deep into serious-build territory, and this kit is typically paired with a rear frame C-notch to maintain adequate tire and frame clearance at full compression.

Because a flip of this magnitude significantly alters driveshaft angle, plan for a carrier bearing relocator and likely a driveshaft shortening or re-angling as part of the full install - this isn't a bolt-and-drive job, it's a proper suspension build that benefits from being done by someone experienced with drivetrain geometry, or a shop that specializes in lowered trucks.

You'll also need shocks and brake lines sized for this drop amount - an 8-inch flip is well beyond stock shock travel and factory brake line length, so plan those upgrades as part of your parts list rather than an afterthought. Parking brake cable routing should also be checked carefully at this drop depth.

The payoff for all this extra planning is a genuinely show-stopping stance that few bolt-on options can match. If you're building a serious dropped C2500 and chasing maximum rear drop without air suspension, this flip kit is the foundation to build the rest of your rear suspension package around.
